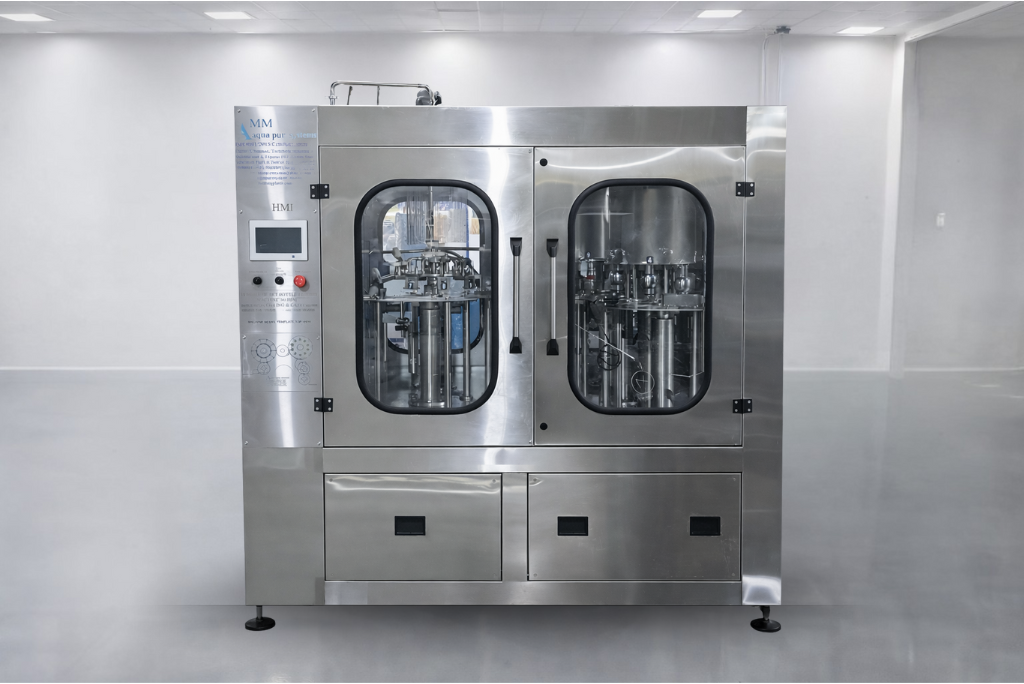

Model No: AAPS 60
Automatic Pet Bottle Water Filling Machines - 60 BPM
Our Automatic PET Bottle Water Filling Machines are designed for hygienic, drip-free filling and capping of packaged drinking water lines. With precise flow control and robust stainless-steel construction, they support continuous, high- speed production with minimal manual intervention.
Features
- Machine speed upto 60 bottles per minute
- Material Of Construction: S.S. 316, S.S. 304, Mild Steel
- Variable speed through frequency drive
- No bottle no rinsing no filling, no capping
- PLC control panel systems with HMI
- Filling nozzle seals made from food grade silicon rubbers
- No change-over parts for various sizes
- Cap elevator provide for easy loading of caps
- All profile cuttings are made by high precision CNC laser cutting
- Feed & delivery conveyor, shrink tunnel and inspection lamp provided
- Easy to maintain and operating
- Components are from branded companies only
Bottle Feeding blower conveyor All system and electrical Panel self designing with Advanced and Unique Technology
Specifications
Production Volume 200 ML to 2000 ML
| Model No | Rinsing | Filling | Capping Head | Machine Dimension | Bottle Capacity |
|---|---|---|---|---|---|
| AAPS 40 | 8 | 8 | 4 | 1700X1900mm | 2400 BPH |
| AAPS 60 | 10 | 10 | 5 | 1900X2000mm | 3600 BPH |
| AAPS 90 | 16 | 16 | 8 | 2200X2000mm | 5400 BPH |
| AAPS 120 | 20 | 20 | 10 | 2000X2500mm | 7200 BPH |
| AAPS 200 | 30 | 30 | 12 | 3600X2100mm | 12000 BPH |
