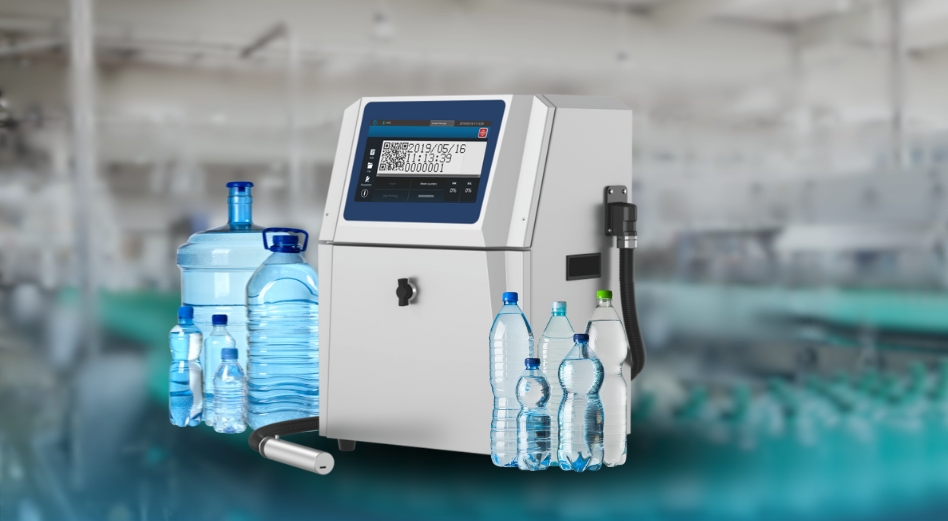

Ink-Jet Printer - UKCM K600
Superior print quality. Extremely simple operations, super friendly to new users with just one-layer many layers interfaces.
True IP55 protection level supporting harsh environment running
Features and Specifications
- Modular ink system
- All in one circuit board
- Precision coating with stainless steel 304
- Simple and clear interface
- Simple and quick maintenance

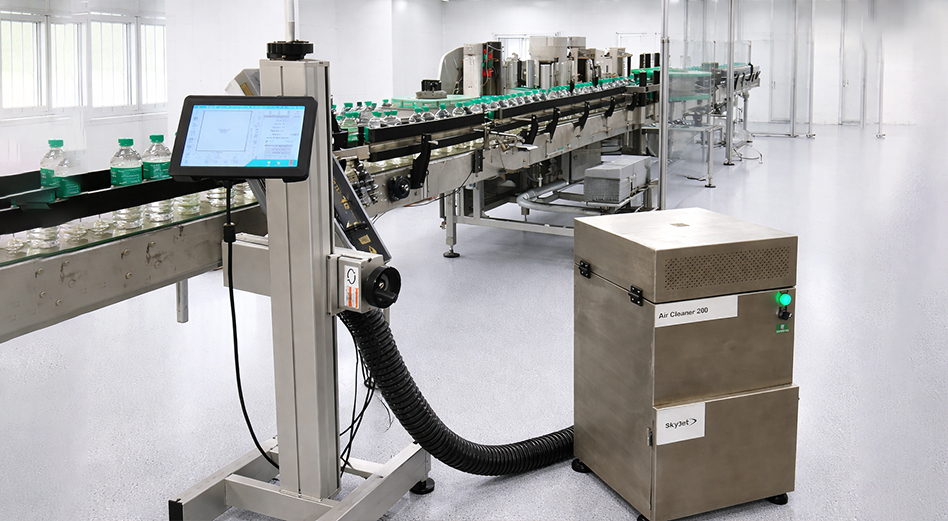

Laser Coding Machine
| Applicable Industries | Plastic Bottles |
|---|---|
| Scanning Method | X and Y – axis simultaneous Scanning Mode |
| Marking Mod | Flying Mode – 150 m/min or 200 m/min (optional) |
| Static Mode – Multiple Products can be marked at the same time | |
| Marking Laser | Generator – CO2 laser generator (high end model optional) |
| Wavelength – 10.6 µm default, 9.3 and 10.2 optional | |
| Output Power – 30 W | |
| Guide Light | Red guide light |
| Marking Area / Focal Distance |
70×70 /100, 110×110 /150, 140×140 /250, 210×210 /300, 300×300 /435 (Optional) |
| Scan Speed | 8000 mm/s, 12000 mm/s optional |
| Software Controller | Linux system, 10-inch touch screen |
| Font Type | Font – Single font, double font, dot font |
| Barcode – Code39, Code25, EAN-13, Code 128, etc. | |
| QR Code – Pdf417, qrcode, datamatrix | |
| Graphics – DXF and PLT vector graphics import/export supported | |
| Marking Status | Running, Ready, Fault Status |
| Font Size | 0.8 mm – maximum marking area |
| Input / Output | 2-way input / 3-way output, can be customized |
| Interface | SD Card, USB 2.0, communication interface supported |
| Laser Installation | Arbitrary marking direction |
| Cooling Method | Air Cooling |
| Power Supply | 50–60 Hz, 110V / 220V |
| Power Consumption | 800 W |
| Operation Temperature | 5 – 40 |
| Operation Humidity | 10% – 90% (non-condensing) |
| IP Rate | IP54 |
| Screen Dimension | 252 × 168 × 36 mm |
| Laser Dimension | 708 × 172 × 167 mm |
| Source Working Life | 40,000 Hours |
