High-Performance Juice Filling Machines for Modern Beverage Production
AMM Aqua offers advanced automatic PET bottle juice filling machines in India designed for high-speed, hygienic, and efficient bottling. Engineered for fruit juices, flavoured drinks, energy beverages, and hot-fill applications, our machines handle pulpy and viscous liquids with precision. With capacities up to 3600 bottles per hour, zero spillage technology, and easy SKU changeover, we help beverage manufacturers scale production with consistency and quality.
What is an Automatic PET Bottle Juice Filling Machine?

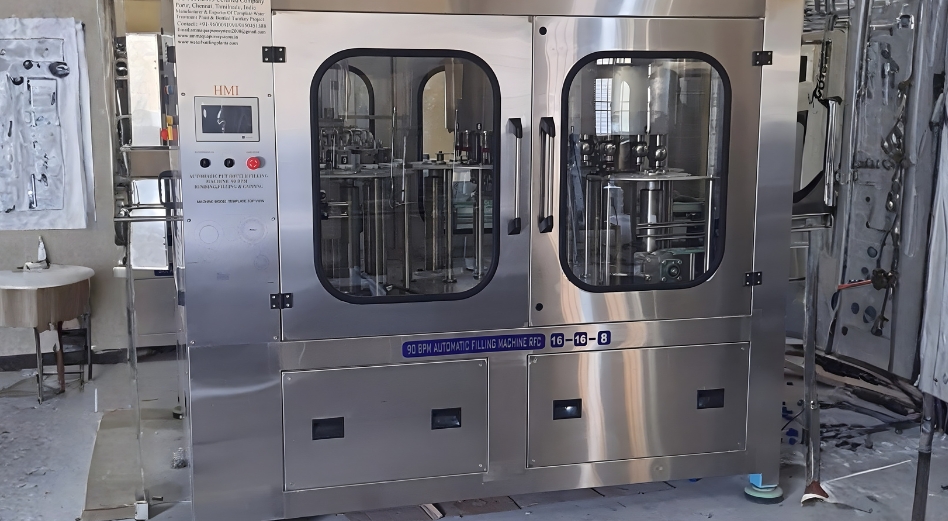

An automatic juice bottling machine is a fully integrated system that performs rinsing, filling, and capping in a single operation. It is widely used in beverage industries for filling fruit juices, flavoured drinks, and hot-fill liquids into PET bottles.
Our PET bottle juice filling machine in India is built with food-grade materials and advanced automation to ensure hygiene, accuracy, and efficiency. It supports both hot fill juice filling machine processes (80–95°C) and cold fill operations, making it suitable for a wide range of beverages.
This machine is ideal for:
- Fruit juice manufacturers
- Beverage startups
- Packaged drink brands
- Ayurvedic and herbal drink producers
How It Works
- Rinsing – Bottles are cleaned with sterilized water or air to remove contaminants
- Filling – Juice is filled with precise volume control and no spillage
- Capping – Bottles are sealed tightly using automated capping heads
Machine Variants – Hot Fill & Cold Fill Juice Machines
Hot Fill Juice Filling Machine
Designed for high-temperature filling (80–95°C), ideal for preserving shelf life without preservatives.
- Suitable for: Mango juice, mixed fruit juice, pulpy beverages
- Capacity: 1800–3600 BPH
- Ensures microbial safety
Cold Fill Juice Filling Machine
Best suited for non-heated beverages and flavoured drinks.
- Suitable for: Flavoured water, energy drinks, clear juices
- Capacity: 1800–3600 BPH
- Maintains taste and freshness
Technical Specifications – Juice Filling Machine
| Parameter | Details |
|---|---|
| Bottle Size Range | 200 ml – 2000 ml |
| Filling Type | Hot Fill & Cold Fill |
| Capacity | 1800 – 3600 BPH |
| Material | SS 304 / SS 316 |
| Filling Accuracy | ±0.5% |
| Power Consumption | As per model |
| Machine Dimensions | Customizable |
| Air Pressure | Standard industrial requirement |
| Control System | PLC with Touch Screen |
| Cleaning System | CIP Compatible |
Hot Fill vs Cold Fill – Key Differences
| Feature | Hot Fill Machine | Cold Fill Machine |
|---|---|---|
| Temperature | 80–95°C | Ambient |
| Suitable Liquids | Pulpy juices | Clear beverages |
| Shelf Life | Longer | Moderate |
| Bottle Type | Heat-resistant PET | Standard PET |
| Industry Use | Juice brands | Soft drinks & flavoured beverages |
Key Features & Benefits
- Accurate Filling (±0.5%) – Minimizes wastage and improves cost efficiency
- SS 316 Contact Parts – Ensures food-grade safety
- CIP Cleaning System – Easy cleaning and hygiene maintenance
- Servo-Driven Capping – Precise and leak-proof sealing
- No Bottle, No Fill Sensor – Prevents product loss
- PLC Touchscreen Control – Easy operation and monitoring
- Quick Changeover – Switch between bottle sizes effortlessly
- Compact Design – Saves factory floor space
Applications & Industries Served
Our fruit juice filling machines are used across multiple industries:
- Industries: Fruit juice manufacturers, Flavoured drink brands, Energy drink startups, Packaged coconut water companies, Herbal & Ayurvedic beverage brands
- Liquids Handled: Mango juice, Orange juice, Mixed fruit beverages, Flavoured water, Pulpy nectars, Hot-filled drinks
- Bottle Sizes Supported: 200 ml, 250 ml, 500 ml, 1000 ml, 2000 ml
Why Choose AMM Aqua?
15+ Years of Industry Experience
200+ Installations Across India
Manufactured in Chennai, Tamil Nadu
Pan-India Service Support
Custom Machine Solutions Available
After-Sales Support
- Installation & training included
- 1-year warranty
- AMC support available
- Fast spare parts availability
